Cee & Zee Sections
A subset of our Superoof umbrella, The Cee & Zee Purlins are specially designed & precisely manufactured in our state-of-the-art facility in Sinner. Accurate manufacturing ensures easy installation at site, excellent fit & finish ensuring there is no twist or sag in the purlins. Thus installation is easy on the contractor & always according to Architects satisfaction.
Purlins with excellent fit finish and precise measurement makes it easy for Sheeting and Cladding installation and enhances aesthetics of the building.
Advantages & Special Features :
- Cold rolled purlins are upto 30 to 45 % lighter in weight.
- For same number of purlins, the cold rolled purlins require lighter primary structure.
- They offer higher strength compared to conventional members.
- Use of secondary members effectively reduces overall cost as lighter primary structure is required.
- Available in a range of sizes to suit your specific requirements in the most cost effective manner
- Manufactured from High Tensile galvanized steel (upto 345Mpa) conforming to ASTM A 653M – 04a Gr. 50
- Manfactured members are easily stackable & thus offer easy & reduced transportation costs
- Factory pre-punched members allow for easy & rapid installation at the site

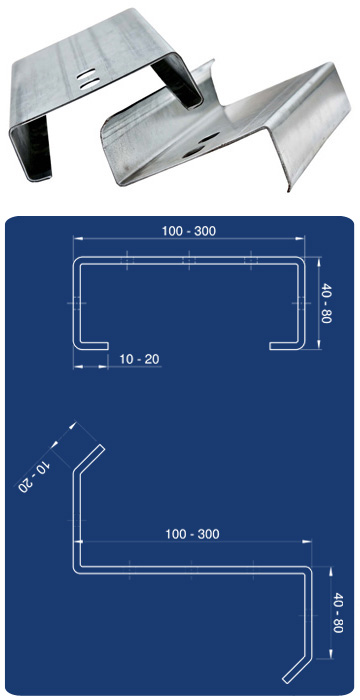

| Specs | DMPL Purlins | Description |
|---|---|---|
| 100-300 | “A” | Web |
| 40-80 | “B” | Fange |
| 10-20 | “C” | Lip |
| 1-3.5 | “D” | Thickness |
| Bay Spacing (m) | DMPL Purlins | Tubular Section | Hot Rolled Channel | Angle Section | ||||
|---|---|---|---|---|---|---|---|---|
| Section A X D (mm) | Weight (Kg/m) | Section | Weight (Kg/m) | Section | Weight (Kg/m) | Section | Weight (Kg/m) | |
| 3.3 | 150X1.5 | 3.56 | 90X3 | 4.16 | ISMC 75 | 6.8 | 100X100X6 | 9.2 |
| 3.8 | 150X1.5 | 3.56 | 90X4 | 5.53 | ISMC 100 | 9.2 | 100X100X6 | 9.2 |
| 4.25 | 150X1.5 | 3.56 | 100X4 | 6.15 | ISMC 100 | 9.2 | 130X130X8 | 15.92 |
| 6.0 | 200X1.8 | 5.06 | N/A | N/A | N/A | |||
| 7.5 | 200X2.0 | 5.62 | N/A | N/A | N/A | |||
| Dead load - .01 Kn/m2 , Live Load – 0.75 Kn/m2, Wind speed – 39 m/s, Purlin Spacing – 1.4m | ||||||||
